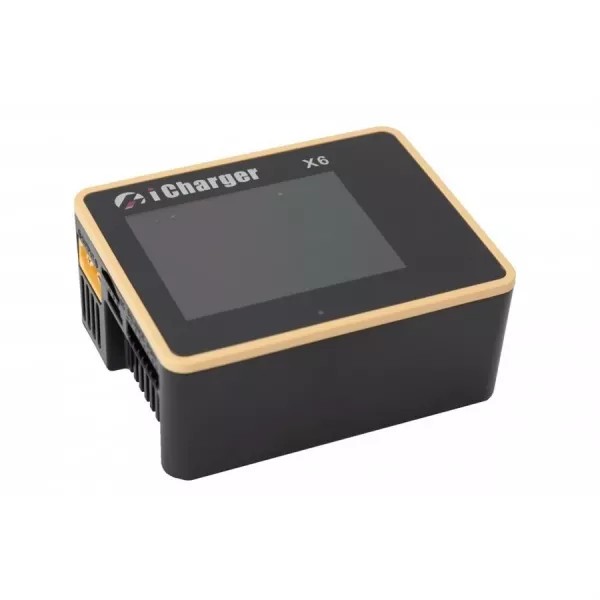

Junsi iCharger X6
The iCharger X6 from Junsi is a very compact 800W charger with integrated balancer, USB port and card slot for micro SD cards. With only 168g it is incredibly light and the compact dimensions save a lot of space on the screwdriver table. The performance of the charger is very impressive - it can charge and discharge with up to 30A!
Technical data of the iCharger X6:
- Microprocessor controlled high performance fast charger/discharger and balancer
- 2.4" IPS LCD color display - 320x240
- Supported battery types: LiIo/LiPo/LiFe/LIHV/LTO/NiZn, NiMH/NiCd, Pb
- Cell count: 1-6 LiIo/LiPo/LiFe/LIHV/LTO/NiZn, 1-16 NiMH/NiCd, 1-12 Pb (2-24 V)
- Input voltage: DC 7-32 V
- Input current: < 35A
- Charging power max.: 800W from approx. 23.5V input voltage
- Charging power at input voltage 12V: >400WCharging current: 0.05 - 30A
- Discharge power max.: 30W
- Discharge current: 0.05 - 30A
- Regenerative discharge: up to 800W
- Discharge with external load max.: 900W 30V/30A
- Balancer current: 2A per cell
- automatic fan control - 1 fan
- Micro USB port
- Micro SD slot to store logs and data
- Dimension: 83×64.5×37 ±0.5mm
- Weight: 168g
Other functions:
- Storage of charging programs and export to SD Card
- Internal resistance measurement of the cells
- Servo test
- Firmware update via USB connection possible.
Scope of delivery:
- Junsi iCharger X6
- 1x output cable 3,3 mm² with XT60 socket
- 1x input cable 3,3 mm² with XT60 socket
- Installation CD with software and manual in english
- printed german manual
- Temperature sensor optionally available
Attention: A sufficiently strong power supply is required for operation!
